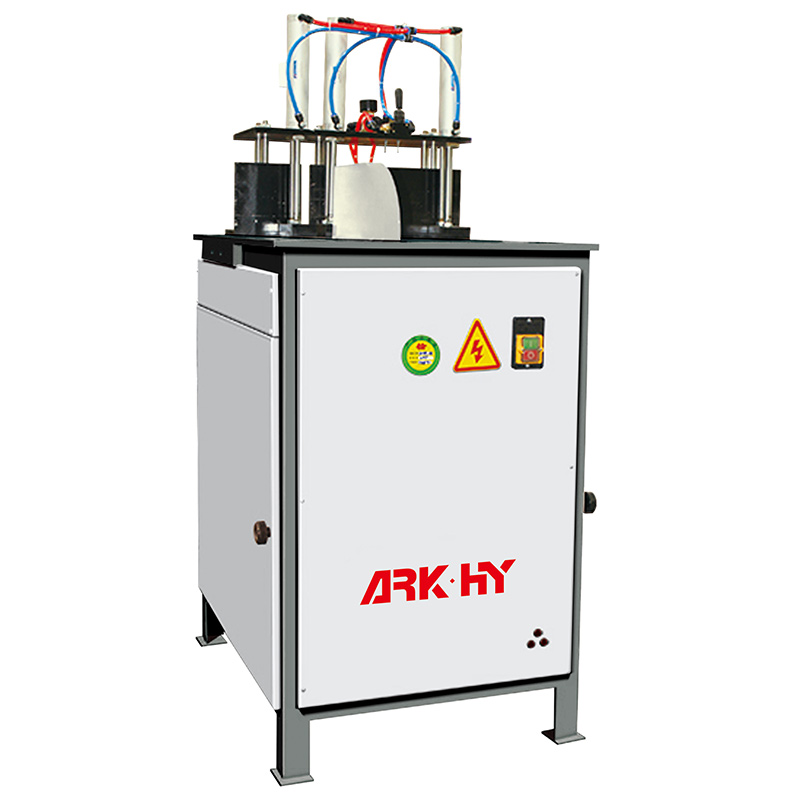

90 degree single head saw-400

Equipment features:

Suitable for 90° cutting of aluminum doors, windows, curtain wall profiles and industrial aluminum profiles

Wide cutting range, wide range of cutting profiles, high power of sawing motor

The profile pressure head and the saw blade protective cover are integrated into one, safe and reliable

The saw blade feed adopts linear bearing kinematic pair, which moves smoothly

The whole machine has a compact structure, small footprint, carbide saw blade, high processing accuracy and high durability.

Can be used with CNC sizing table for high processing efficiency.

Main specifications and technical parameters:

Power supply: 380V 50Hz

Sawing motor: 2.2Kw 2800r/min

Working pressure: 0.5～0.8MPa

Saw blade specifications: 400*30*120

Cutting range: (width*height): 110*180mm

Sawing angle 90°

Blanking length 80-3000mm

Outline dimensions (length × width × height): 830*620*860mm

Weight: 800Kg
