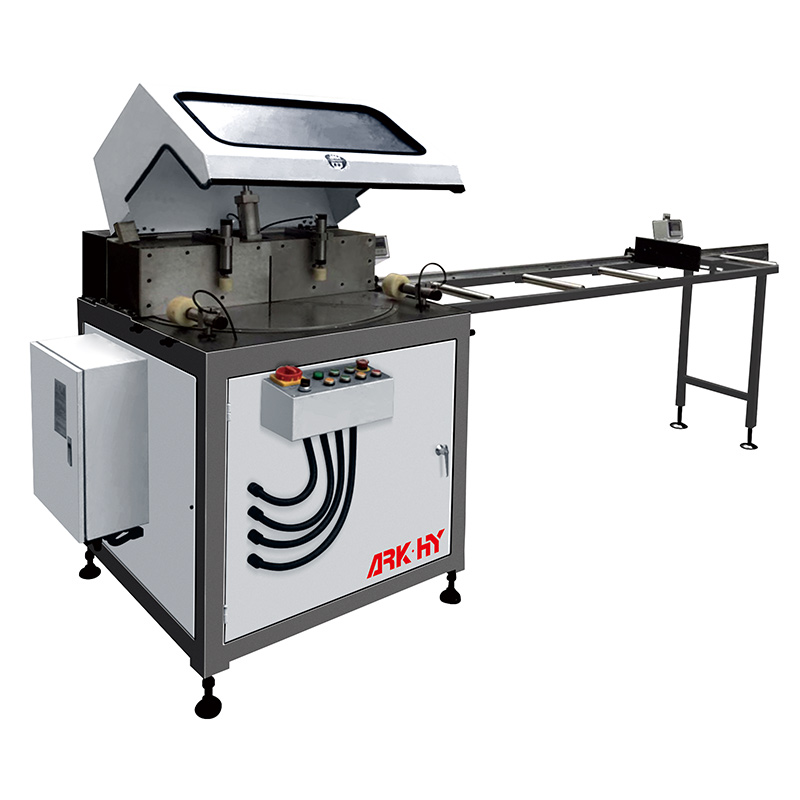

Aluminum profile single-head saw at any angle (rotary disc type)ARK-DR-550

Aluminum profile single-head saw at any angle (rotary disc type)ARK-DR-550

Equipment performance features:

It is mainly used for cutting and blanking aluminum alloy profiles, and can also be used for cutting and blanking plastic profiles. It uses a carbide saw blade with high linear speed and high processing accuracy. This machine is equipped with a size positioning frame, and a digital display device can be installed according to customer requirements, so the positioning size is accurate. The workbench can rotate between (-15°) ~ 90° ~ (+15°). After the backrest is moved backward, the workbench can be positioned at 0°, and the saw blade can be raised and fixed for grooving sawing. Therefore, it is especially suitable for aluminum alloy profiles at different angles.

Main technical parameters:

Main motor power 3kw

Main motor speed 2840r/min

Working air pressure 0.5~0.8Mpa

Operating voltage 380V 50HZ

Blanking length 0-3000mm

Sawing range 150×150mm

Sawing angle 0°-165°

Outline dimensions (length×width×height): 1100×1250×1550mm

Machine weight: 1100kg
