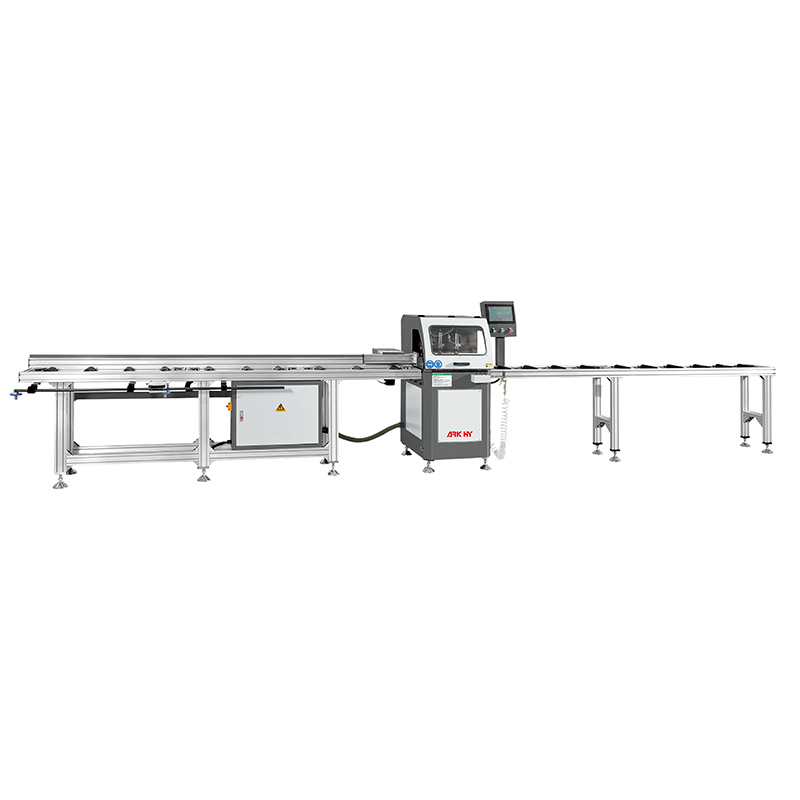

CNC Wireless Measurement Pressing Wire Cutting Saw ARK-CNC-YXJ-100

Equipment features:

This machine is suitable for 90 ° cutting and cutting of aluminum door and window profiles.

Wireless measurement automatic transmission, accurate sizing, cut out the required size at one time, no need for repair.

High processing accuracy: high-precision spindle saw blade motor, stable performance.

Simple operation, reliable performance, advanced technology, easy maintenance.

High-precision cutting saw blade, smooth cutting section.

Precise CNC sizing to ensure the size of the cutting strip.

Equipped with a handheld wireless measurement mechanism to measure the strip size in real time.

Equipment processing accuracy 0.1mm.

Main specifications and technical parameters:

Power supply 380V/50Hz

Power 2.0kw

Motor power 1.3KW

Air pressure 0.5～0.8 MPa

Air consumption 8 L/min

Motor speed: 2800r/min

Saw blade size ø350×3.2×ø30 Z=100

Cutting range: square tube: 70×70mm, rectangular tube: 80×70mm

Main unit 500×820×1700 mm

Overall dimensions 8200×900×1700mm (including two side brackets)

Weight: 720kg
