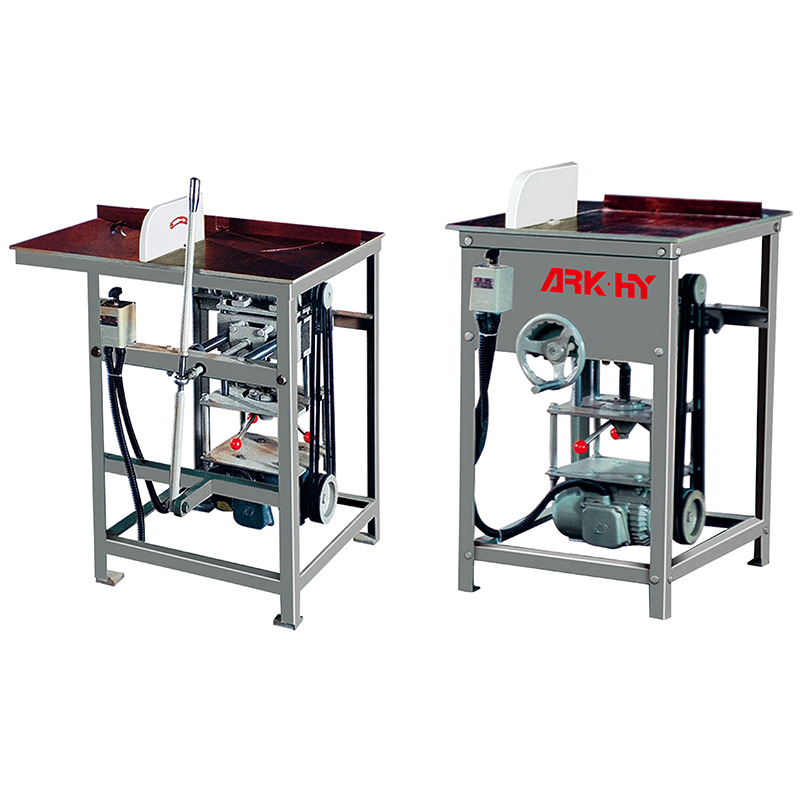

Hand Push Platform Saw-250

Manual sawing machine (hand push) ARK-ST250

Application and structural features:

Mainly suitable for cutting aluminum alloy window profiles and plastic profiles;

The frame panel (workbench) is surface ground, so it is suitable for high-precision manual cutting;

The height of the blade can be adjusted according to cutting needs;

The machine tool is light and easy to move.

Main technical parameters:

Cutting width: max150mm

Cutting height: max75mm

Motor power: 1.5Kw

Cutter shaft speed: 2840rpm

Saw blade size: Φ250×Φ30×80T

Air pressure: 0.5-0.8mpa

Power supply: 220V/50Hz

Gas consumption: 40L/min

Cutting surface flatness: ≤0.10mm

Cutting surface verticality: 0.1mm

Cutting surface roughness: Ra12.5µm

Hangar dimensions (length×width×height): 880×600×950mm

Machine weight: 150Kg
