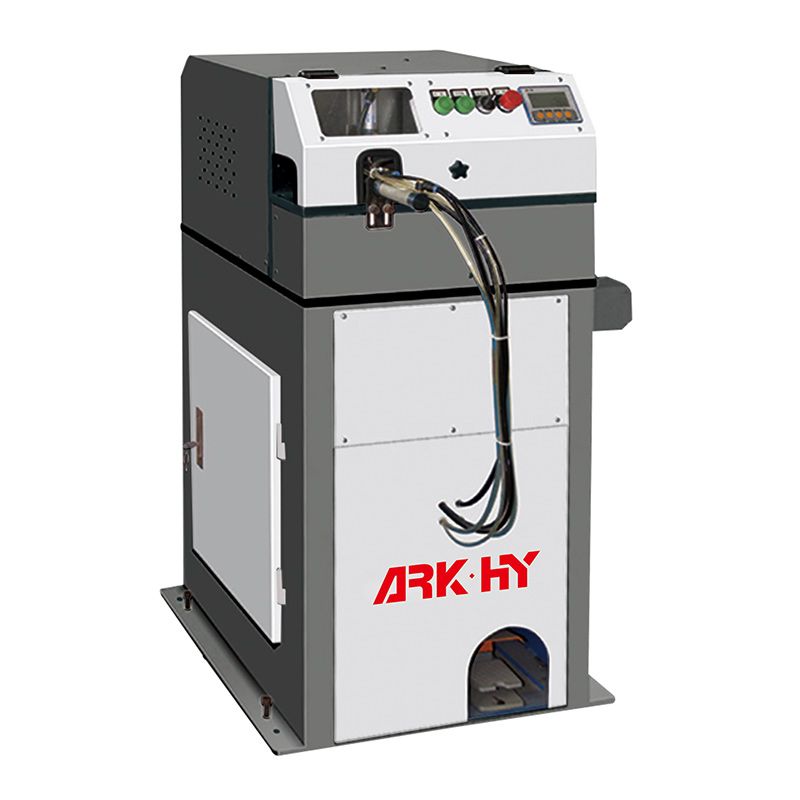

Aluminum door and window crimping saw 90° ARK-WQ-200A

Aluminum Door and Window Pressing Wire Trimming Saw 90° ARK-WQ-200A

Performance Features:

Suitable for 90° precision grinding of aluminum alloy doors and windows.

This machine has stable and reliable performance, high working precision, beautiful appearance and easy operation.

The motion pair adopts linear motion guide rails, with small motion resistance and high precision.

Key components (sawing motors, linear guides, cylinders, buttons, low-voltage electrical, etc.) are all world-renowned brand components with reliable performance and long service life.

The feed system has cylinder feed and outlet throttle speed regulation for speed adjustment and control. The cutting feed is stable and even, and the cutting accuracy and surface quality are good.

Technical parameters:

Sawing motor power: 1.15kw

Sawing motor speed: 2840rpm

Saw blade specifications: 250*33*2.2*2.8*100mm

Voltage: 380V/220V

Sawing angle 90°/45°

Sawing range (width*height) 50*80mm

Working air pressure 0.6-0.8Mpa

Outline dimensions: 890*385*280mm

Weight: 300kg
