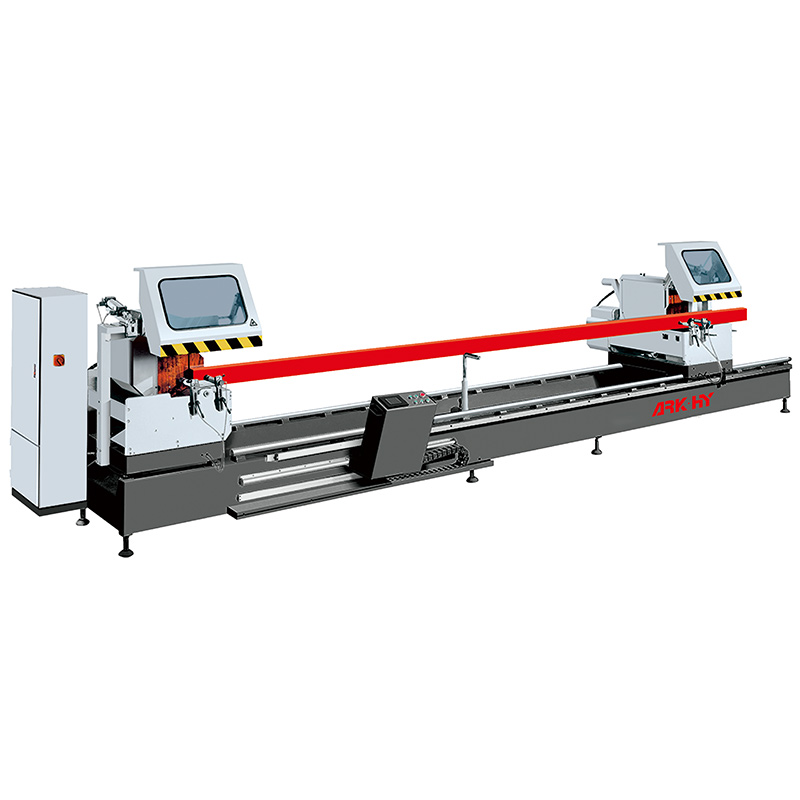

Aluminum profile arbitrary angle CNC double head precision cutting ARK-3CNC-550×6000

ARK-3CNC-550×6000 CNC double-head precision cutting of aluminum profiles at any angle

Equipment features:

This machine is mainly used for sawing aluminum door, window and curtain wall profiles at any angle. The two saw heads can rotate at any angle between 45° and 157.5°.

The machine is easy to operate, reliable in performance, advanced in technology, and easy to repair and maintain. It has high cutting speed, high processing accuracy and high production efficiency.

The whole machine adopts European model, with neat appearance and elegant style;

The control system adopts full closed-loop design to ensure the repeatable sizing accuracy to a greater extent;

The motor is directly connected to the saw blade, and the cutting action adopts the form of lever swing;

The saw blade feeding adopts gas-liquid damping cylinder transmission, and the cutting is stable;

High-precision cutting saw blade, smooth cutting section;

The servo motor drives the high-precision reducer to achieve the sawing angle between 45° and 157.5°. Adjustable;

The movable saw head is driven by the servo motor to drive the gear rack, with fast running speed, high stability, fast moving speed, full closed-loop control, and high sizing accuracy;

It has a follow-up opening and closing saw cover, which is safe and reliable, and has a good working environment;

The movable profile support frame has a compact structure and the machine occupies a small area;

Each head has two cylinders to clamp the profile, and the cutting is safe and reliable.

Main specifications and technical parameters:

Power supply: three-phase four-wire 380V 50Hz

Sawing motor: 2×3Kw Speed: 2800r/min

Working pressure: 0.5～0.8Mpa

Gas consumption: 60L/min

Saw blade specifications: φ550×φ30×4.4 Z=120

Feed speed: 0～3m/min

Head moving speed: 0～20m/min

Sawing length: 90° max 6000mm min 360mm

45° max 6000mm min 760mm

Sawing width×height: 135×260mm

Repeat length error: ±0.2 mm

Cutting surface flatness: ≤0.10 mm

Cutting angle error: ±5,

Cutting surface roughness: Ra12.5µm

Dimensions: 7800mm×1500mm×2040mm

Weight: 1800kg
