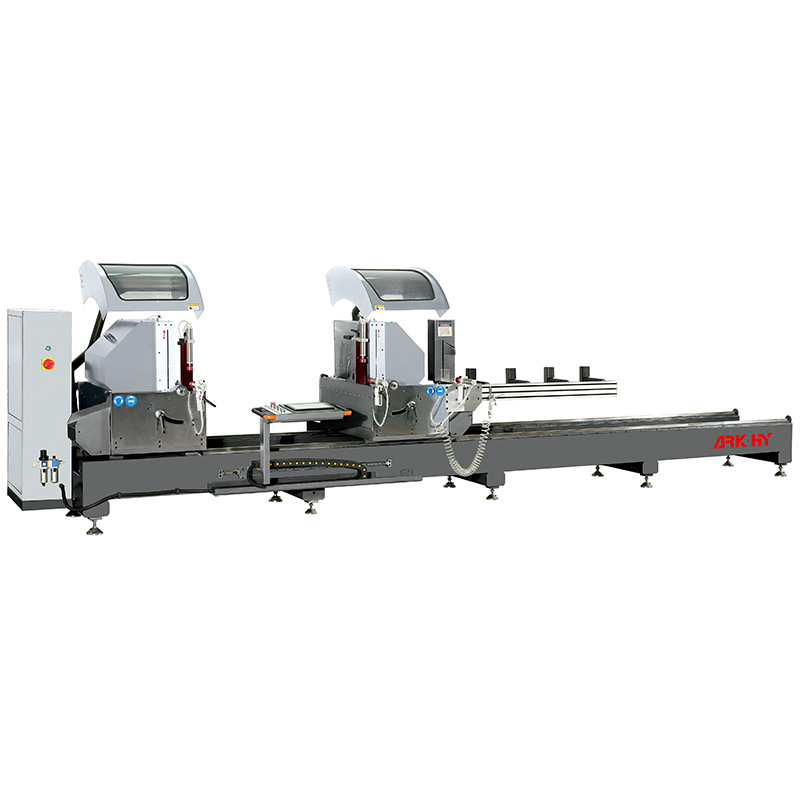

Aluminum profile integrated intelligent CNC double-head precision cutting saw ARK-JCNC-550×5000A

Aluminum profile integrated intelligent CNC double-head precision cutting saw   ARK-JCNC-550×5000A

Equipment Features:

New design concept, neat appearance, elegant style;

The control system adopts a fully closed-loop design to ensure the repeatable sizing accuracy to a greater extent;

High-precision spindle motor directly connected to the saw blade, 45°-90° cutting.

The saw blade feed adopts gas-liquid damping cylinder transmission, stable cutting;

High-precision imported cutting saw blade, smooth cutting section

With follow-up opening and closing saw cover, safe and reliable, good working environment;

The follow-up profile support rack has a compact structure and small machine footprint;

The length direction adopts square rail operation, gear rack transmission, fast speed and high precision.

Each head has two cylinders to clamp the profile, and the cutting is safe and reliable. The automatic material height measurement function is installed, and the length size is more accurate.

Main specifications and technical parameters:

Power supply: three-phase four-wire 380V 50Hz

Sawing motor: 2×3Kw Speed: 2840r/min

Working pressure: 0.5～0.8Mpa

Gas consumption: 60L/min

Saw blade specifications: φ550×φ30×4.4

Feed speed: 0～3m/min

Head moving speed: 0～20m/min

Sawing length: 90°350—4900mm 45°350-4900mm+material height

Sawing range (w×h): 165mm× 260

Repeated length error: ±0.2 mm

Cutting surface flatness: ≤0.10 mm

Cutting angle error: ±5,

Overall dimensions (length×width×height): 6200x1500x1960mm Machine weight: 2000kg
