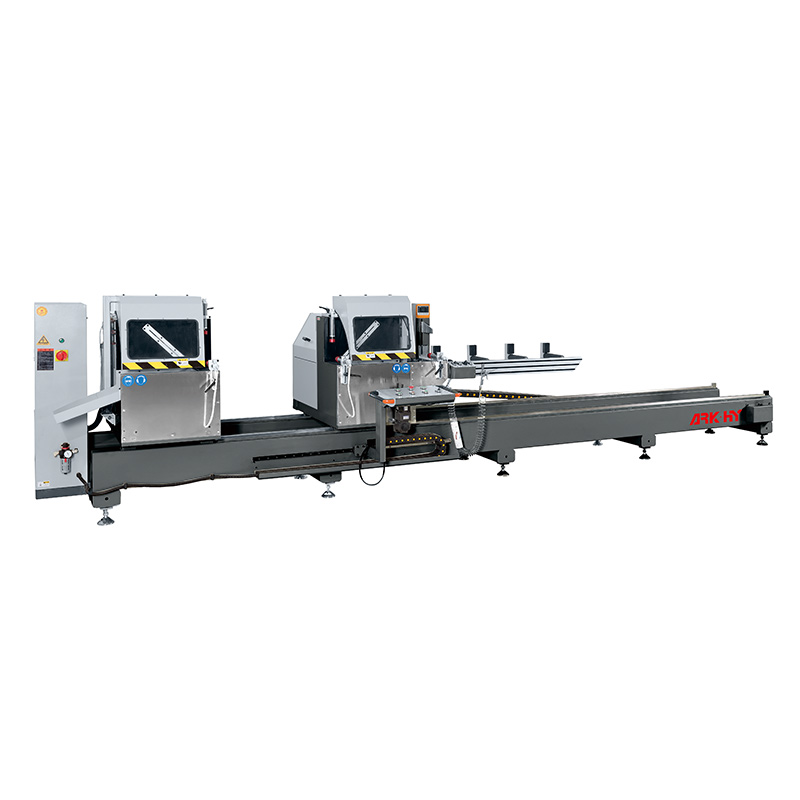

Aluminum profile integrated intelligent CNC 45° special double-head cutting saw (outside swing) ARK-ZSJJ-550×5000A

Aluminum profile integrated intelligent CNC 45° special double-head cutting saw (outside swing) ARK-ZSJJ-550×5000A

Equipment features:

New design concept, neat appearance, elegant style;

High-precision spindle motor directly connected to saw blade, fixed at 45°.

The saw blade feed adopts gas-liquid damping cylinder transmission, stable cutting;

High-precision imported cutting saw blade, smooth cutting section;

With follow-up opening and closing saw cover, safe and reliable, good working environment;

The follow-up profile support frame has a compact structure and small machine footprint;

The automatic material measurement function is installed, and the length size is more accurate.

Two cylinders on each machine head clamp the profile, making cutting safe and reliable;

Main specifications and technical parameters:

Power supply: three-phase four-wire 380V 50Hz

Sawing motor: 2×3Kw Speed: 2840r/min

Working pressure: 0.5～0.8Mpa

Gas consumption: 60L/min

Saw blade specifications: φ550×φ30×4.4

Feed speed: 0～3m/min

Machine head moving speed: 0～20m/min

Sawing length: min: 320+material height, max: 4800+material height

Sawing range (w×h): 160mm× 200

Repeat length error: ±0.2 mm

Cutting surface flatness: ≤0.10 mm

Cutting angle error: ±5,

Dimensions (length × width × height) 6200x1500x1960mm

Machine weight 2000kg
