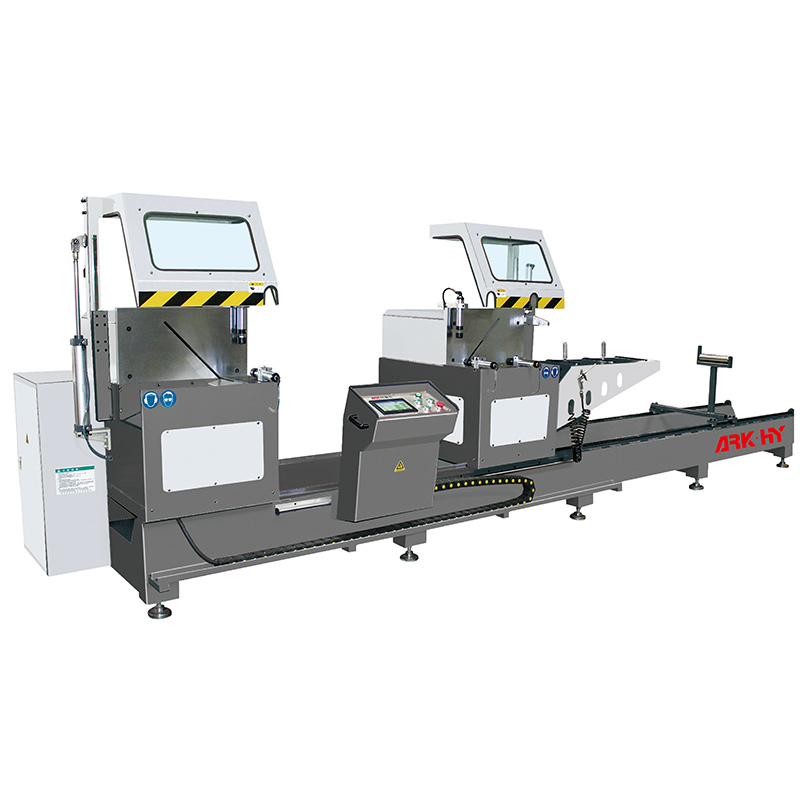

Special CNC double-head cutting saw for aluminum profiles 45° (outside swing) ARK-ZSJ-500×5000

Special CNC double-head cutting saw for aluminum profiles 45° (outside swing) ARK-ZSJ-500×5000

Equipment features:

New design concept, neat appearance, elegant style;

The control system adopts a fully closed-loop design to ensure the repeatable sizing accuracy to a greater extent;

High-precision spindle motor directly connected to the saw blade, fixed at 45°.

The saw blade feed adopts gas-liquid damping cylinder transmission, and the cutting is stable;

High-precision imported cutting saw blade, the cutting section is smooth;

With follow-up opening and closing saw cover, safe and reliable, good working environment;

The follow-up profile support rack has a compact structure and the machine occupies a small area;

Add the automatic material measurement function, and the length size is more accurate.

Each head has two cylinders to clamp the profile, and the cutting is safe and reliable;

Equipped with an industrial computer, it can realize advanced functions such as profile optimization and cutting.

Optional barcode printer can be used to form an E-word digital factory.

Main specifications and technical parameters:

Power supply: three-phase four-wire 380V 50Hz

Sawing motor: 2×3Kw Speed: 2840r/min

Working pressure: 0.6～0.8Mpa

Gas consumption: 60L/min

Saw blade specifications: φ550×φ30×4.4

Feed speed: 0～3m/min

Head moving speed: 0～20m/min

Sawing length: min: 320+material height, max: 4800+material height

Sawing range (w×h): 160mm× 200

Repeated length error: ±0.2 mm

Cutting surface flatness: ≤0.10 mm

Cutting angle error: ±5,

Overall dimensions (length×width×height) 6200x1500x1960mm

Machine weight 2000kg
