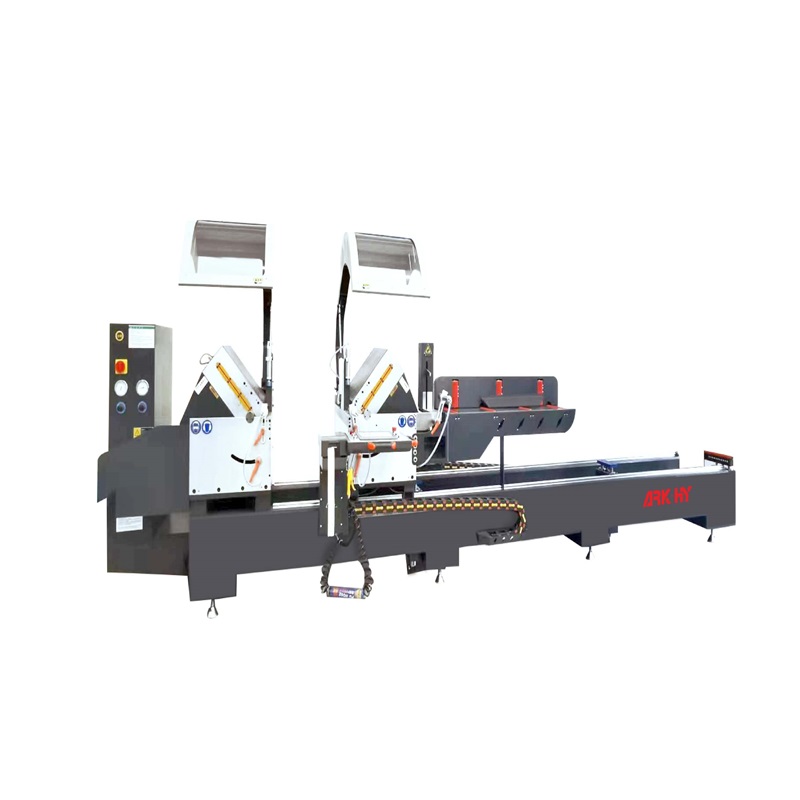

Aluminum profile CNC double-head precision cutting saw ARK-CNC-550×4500B

Equipment features:

New design concept, neat appearance and elegant style;

High-precision spindle motor directly connected to the saw blade.

The saw blade feed is driven by a gas-liquid damping cylinder, which ensures stable cutting;

High-precision imported cutting saw blade, smooth cutting section;

It has a follow-up opening and closing saw cover, which is safe and reliable and has a good working environment;

The movable profile support rack has a compact structure and the machine occupies a small area;

Two cylinders on each machine head clamp the profile, making cutting safe and reliable.

Main specifications and technical parameters:

Power supply: three-phase four-wire 380V 50Hz

Sawing motor: 2×3.0kw

Speed: 2800r/min

Saw blade specifications: φ550×φ30×120T

Sawing range (w×h): 165mm×260mm

Blanking length: 45°350-4500mm+material height 90°350-4500mm

Outline dimensions (length×width×height): 6000x1500x1960mm

Machine weight: 1800kg
