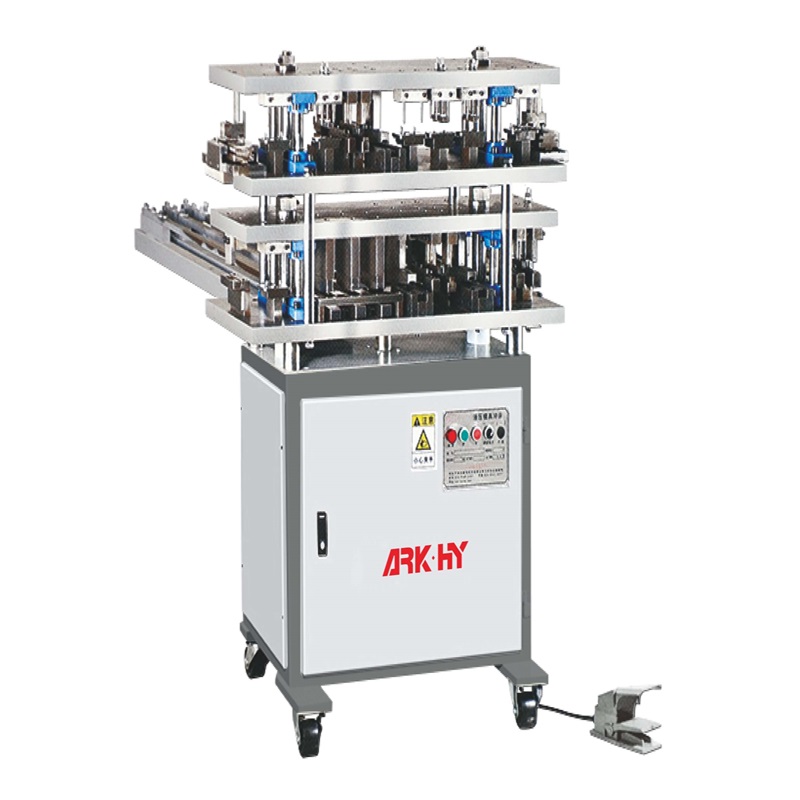

Double layer hydraulic punch ARK-YC2-100

Features:

Suitable for stamping processing of all holes, slots and notches in aluminum profiles

The reasonable transmission structure and precision guide bushing ensure the long-term matching accuracy between the upper and lower dies.

Combined design makes it easy to disassemble the mold base to replace molds and templates

Highly upgradable, one layer can be increased to two layers

Main technical parameters:

Input power 2.2KW

Input power 380V 50HZ

Cylinder capacity: 40L

Nominal pressure: 60KN

Closed height: 130-240mm

Punch stroke: 60mm

Mold installation interval: 2 (pcs)

Outline dimensions 950*750*1400

Weight 550KG
