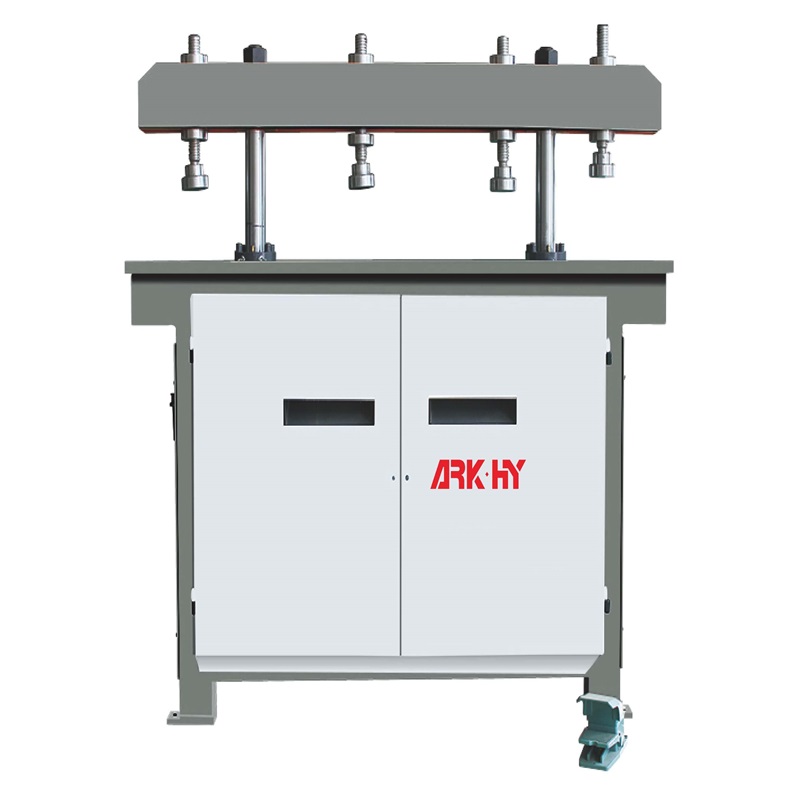

Single cylinder double column hydraulic punch press ARK-SZC-100

Single cylinder double column hydraulic punch press ARK-SZC-100

Features:

It is mainly used in conjunction with the single-mold and combined molds of the aluminum alloy door and window series, and can complete the punching processing of all holes and gaps in various corresponding ordinary profiles and heat-insulating profiles. Two guide pillars are used as guides. The blanking has good stability, high efficiency, low noise, no pollution and high precision. Changing the mold is quick, easy, safe and reliable. The hydraulic cylinder drives the swing axis to mechanically control the two tension columns to be synchronized, completely eliminating the phenomena of shaking, material jamming, and knife breakage that often occurred on similar models in the past due to unbalanced molds or punching positions and uneven stress. At the same time, compared with the same size models on the market, it has a larger die matching space and greater punching power.

Main technical parameters:

Nominal pressure: 100KN

Closed height: 140-280mm

Punch stroke: 80mm

Mold installation interval: 3 (pcs)

Cylinder capacity: 50L

Motor power: 3.75Kw

Working voltage: 380V/50HZ

Outline dimensions (length x width x height): 13000X730X1280mm

Machine weight: 1000kg
