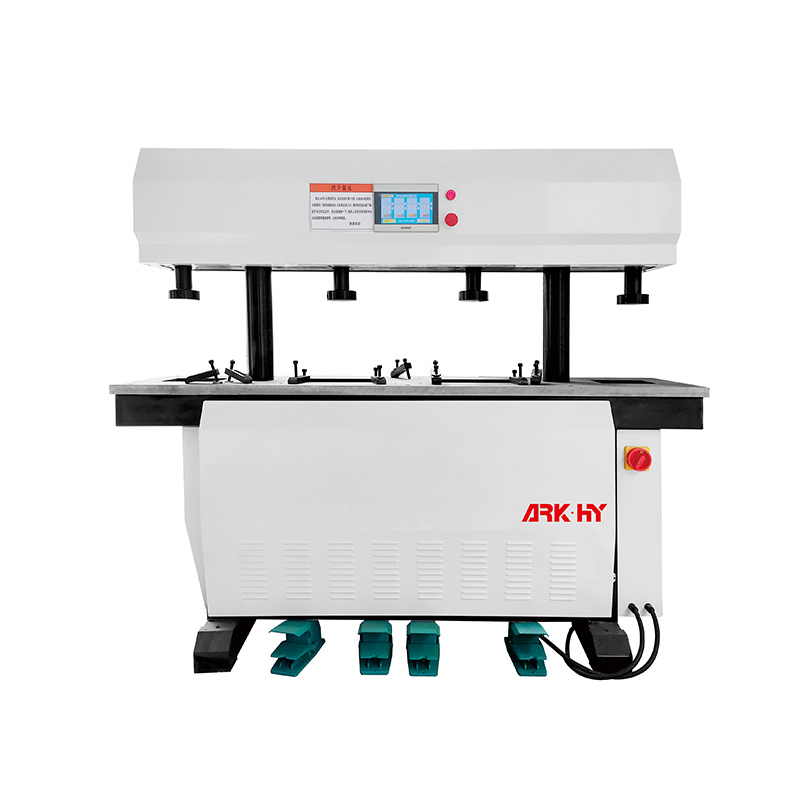

CNC hydraulic punch ARK-SZS-100S

CNC hydraulic punch ARK-SZS-100S

Features:

It is mainly used in conjunction with the single-mold and combined molds of the aluminum alloy door and window series, and can complete the punching processing of all holes and gaps in various corresponding ordinary profiles and heat-insulating profiles. It is controlled independently by 4 hydraulic cylinders, which can be linked or single-acting. It is easy to use and reduces the wear and tear of the mold. Hydraulic control, stable blanking, high efficiency, low noise, no pollution, high precision, fast, easy, safe and reliable mold replacement.

Main technical parameters:

Nominal pressure: 100KN

Closed height: 140-280mm

Punch stroke: 80mm

Mold installation interval: 3 (pcs)

Cylinder capacity: 50L

Motor power: 3.75Kw

Working voltage: 380V/50HZ

Outline dimensions (length x width x height): 13000X730X1280mm

Machine weight: 1000kg
