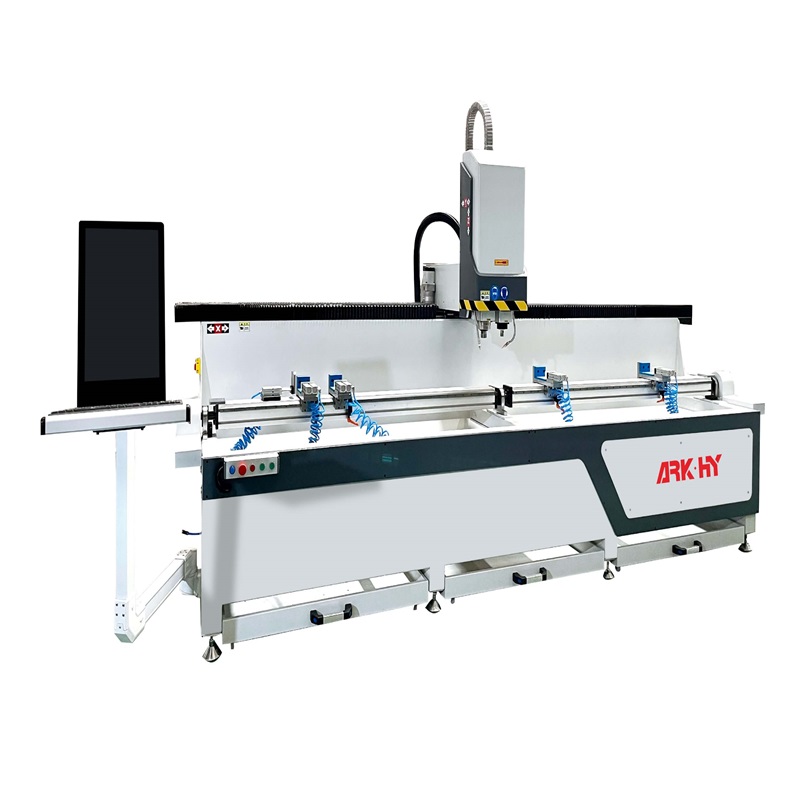

Aluminum profile double-head CNC drilling and milling machine (reversible) ARK-CNC-3000

Aluminum profile double-head CNC drilling and milling machine (reversible)   ARK-CNC-3000

Features:

Suitable for milling of various types of holes and slots in aluminum alloy profiles

Using high-precision linear guide rail pairs, gear racks and servo motors to ensure stable movement and high positioning and processing accuracy

Using high-precision and high-speed electric spindle, stable rotation, low noise and strong cutting ability

Intelligent CNC system and simple and intuitive human-machine interface make operation more convenient and faster

The rotatable worktable can be arbitrarily converted between the three positions of -90°, 0° and +90°, enabling milling of three surfaces to be completed in one clamping

The main machine is composed of two dual-axis spindle motors, which can be equipped with two different types of tools to meet the holes and grooves that need to be processed in different materials. It is easy to use and highly efficient.

Main specifications and technical parameters:

Transverse travel (X-axis): 3000mm

Longitudinal stroke (Y-axis): 300mm

Vertical travel (Z axis): 280mm

Spindle speed/power: 0～1800rpm/3kw*2

Air pressure: 0.5～0.6MPa

Total power of the whole machine: 8.5KW

Weight: 1200kg
