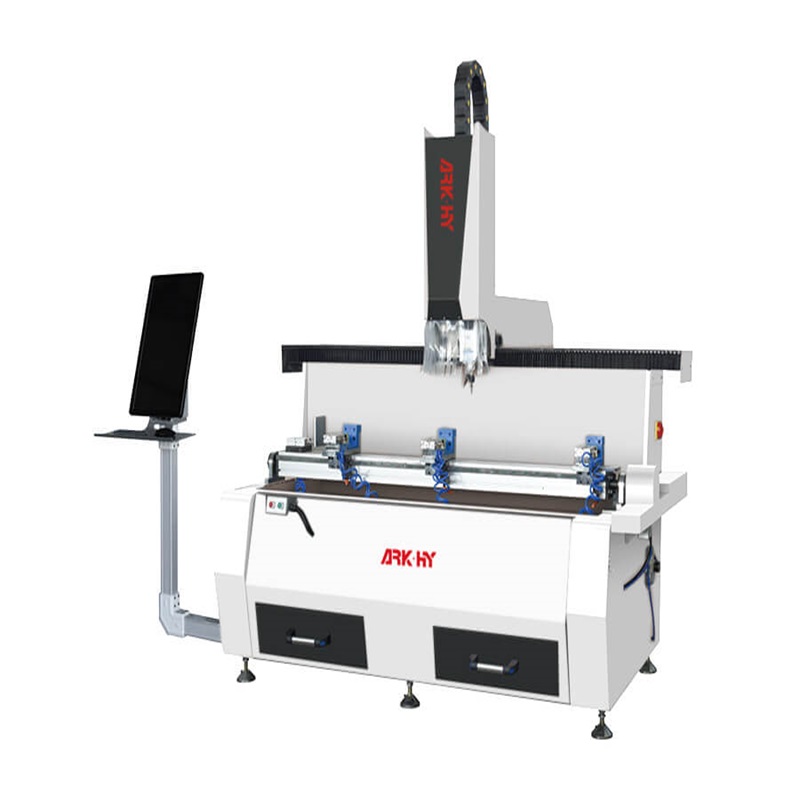

Aluminum profile double-head CNC drilling and milling machine ARK-CNC-1500A

Aluminum profile double-head CNC drilling and milling machine  ARK-CNC-1500A

Features:

Suitable for milling of various types of holes and slots in aluminum alloy profiles

Using high-precision linear guide rail pairs, gear racks and imported servo motors to ensure stable movement and high positioning and processing accuracy

Using high-precision and high-speed electric spindle, stable rotation, low noise and strong cutting ability

Intelligent CNC system and simple and intuitive human-machine interface make operation more convenient and faster

The rotatable worktable can be arbitrarily converted between the three positions of -90°, 0° and +90°, enabling milling of three surfaces to be completed in one clamping.

Main specifications and technical parameters:

Transverse travel (X-axis): 1500mm

Longitudinal stroke (Y-axis): 300mm

Vertical travel (Z axis): 280mm

Spindle speed/power: 0～1800rpm/3kw

Air pressure: 0.5～0.6MPa

Total power of the whole machine: 6.5KW

Weight: 610kg

X-axis running speed: 0～60m/min

Y-axis running speed: 0～48m/min

Z-axis running speed: 0～20m/min

Power supply: 380V/50Hx

Outline dimensions (length*width*height): 2200*1500*1950mm
