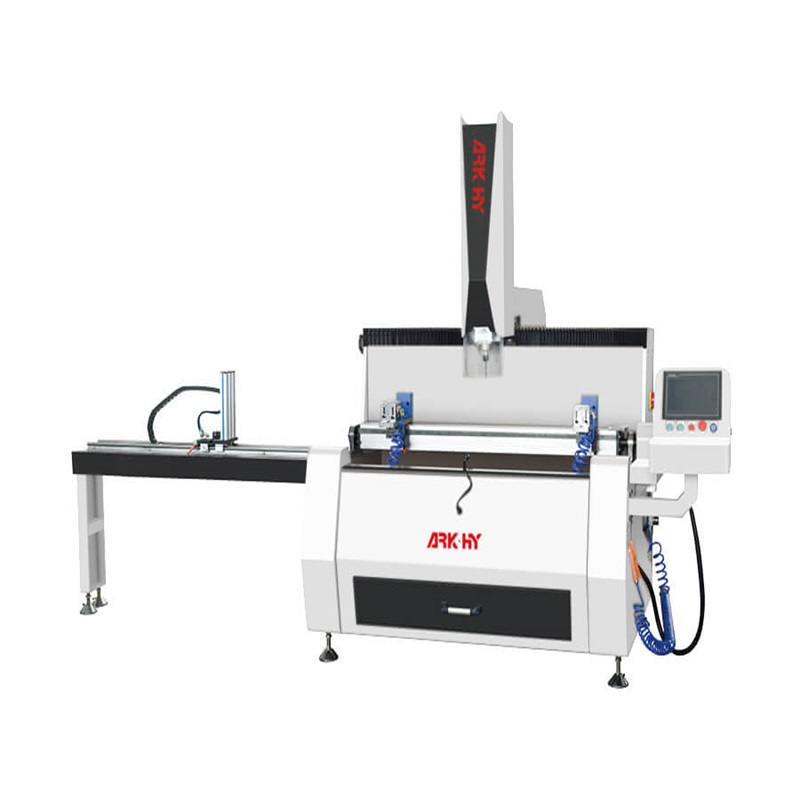

Aluminum profile CNC drilling and milling machine ARK-CNC-800A
Aluminum profile CNC drilling and milling machine ARK-CNC-800A
Equipment features:
Suitable for milling various types of holes and slots of aluminum alloy profiles.
Adopt high-precision linear guide pair, gear rack and imported servo motor to ensure stable movement, high positioning and processing accuracy.
Adopt high-precision high-speed electric spindle, stable rotation, low noise and strong cutting ability.
Intelligent CNC system and simple and intuitive human-machine interface make operation more convenient and quick.
The rotatable worktable can be switched between -90°, 0° and +90°, so that milling of three surfaces can be completed in one clamping.
Main specifications and technical parameters:
Lateral travel (X-axis)800 | X-axis running speed0～5m/min |
Longitudinal travel (Y axis)500 | Y-axis running speed0～4m/min |
Vertical travel (Z axis)300 | Z-axis running speed0～4m/min |
Spindle speed/power 0~ 18000rpm/3.5kw | Workbench working position -90°、0°+90° |
Air pressure 0.5～0.6MPa | Tool chuck ER25～ø8 |
Total power of the whole machine 6.5KW | power supply 380V/50Hx |
Processing size range (width*height*length) 90*120*500 | Overall dimensions (length*width*height) 1200*1600*1800mm |
weight 500kg |
