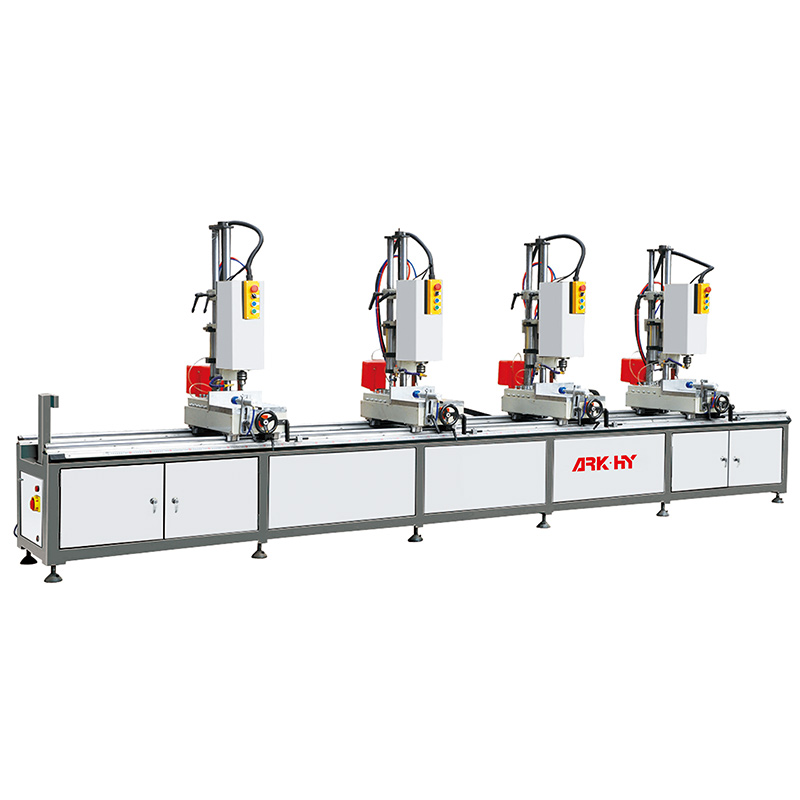

Aluminum curtain wall multi-head combination drilling machine (four heads) ARK-DZ4-13
Equipment features:
Mainly used for drilling holes in aluminum alloy doors and windows, curtain wall profiles, especially suitable for long materials and mass production.
Applicable to profiles with a cross-section not exceeding 250×250mm, and the maximum processing length reaches 5000mm.
Multi-head drill seat can be installed to meet the simultaneous processing of multiple groups of holes.
The feeding system adopts gas-liquid damping cylinder, and the feeding is stable.
The imported control system can realize the linkage of any machine head.
The number of power heads can be selected from two to six (customized).
Technical parameters:
Power supply: 380V 50HZ
Motor power: 4×1.1KW
Maximum drilling diameter: 13mm
Maximum distance between two drilling holes: 5000mm
Minimum distance of each group of holes: 300mm
Quantity of power heads: 4
Outline dimensions (length×width×height): 5500×1100×1800mm
Weight: 800kg
