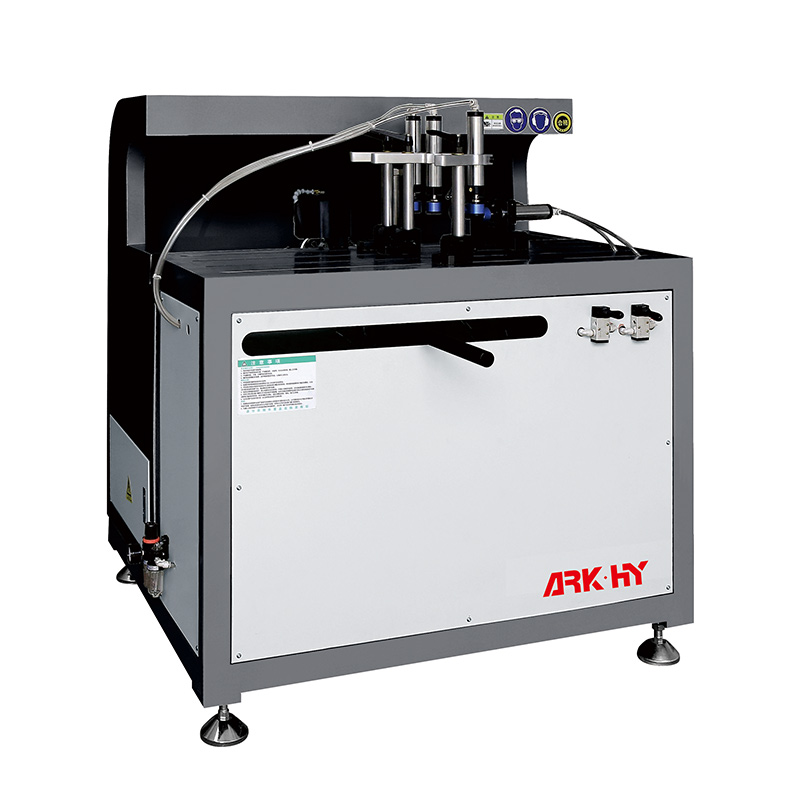

Arc end milling of aluminum doors and windows ARK-YDX-250

Features:

Suitable for the forming and processing of end faces, step faces and end face grooves of various special-shaped windows (polygonal, arc-shaped, etc.)

Using hand push operation, the speed can be controlled according to different profiles

Multiple carbide saw blades are installed on the spindle motor; the end face of the profile can be milled to the required tenon size in one pass

Equipped with vertical and horizontal compression, which can be adjusted according to different window materials.

Main specifications and technical parameters:

Input power: 2.2KW

Input power: 380V/50HZ

Working air pressure: 0.6-0.8mpa

Spindle speed: 2840rpm

Saw blade specifications: Ф200*Ф32

Milling height: 150mm

Workbench size: 1000mm

Air consumption: 30L/min

Outline dimensions: 1000*700*1300mm

Weight: 350kg
