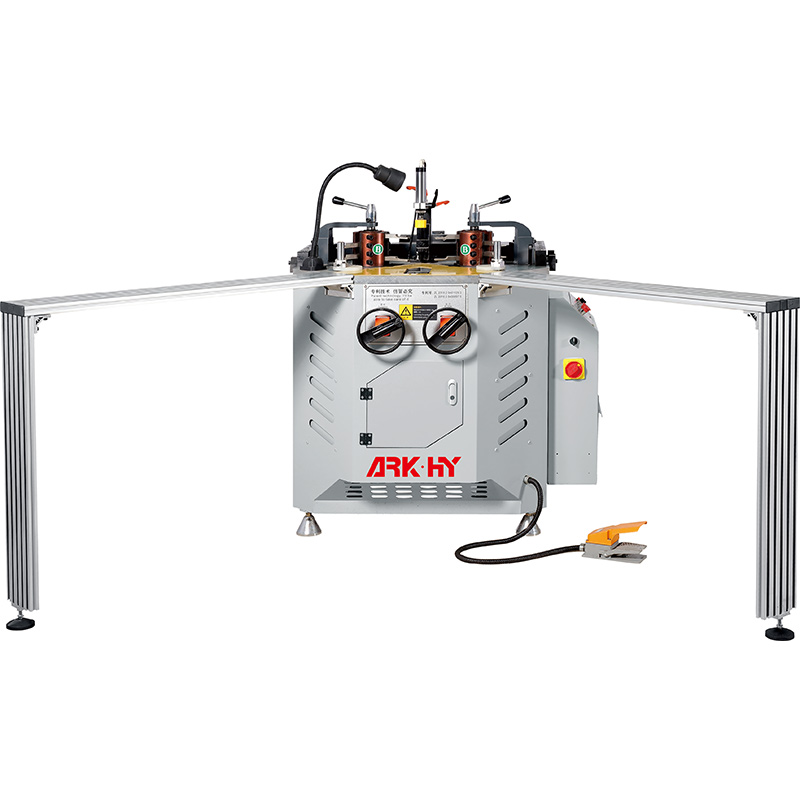

Heavy-duty single-head angle assembly machine for aluminum doors and windows (sunken type) ARK-DZG-120D

Product features:

Suitable for high-quality requirements and corner impact of large door and window profiles.

Equipped with three sets of tool magazines, which can be selected according to needs to improve efficiency and reduce equipment storage space.

Digital adjustment of corner impact depth, simple and accurate.

Can be equipped with multi-functional impact fork, which can impact any insulation profile 8 points and offset impact corner.

The triangular positioning block can be raised and lowered, which is convenient for placing profiles.

The triangular block and impact fork are installed with screws, which is easy to adjust.

Technical parameters:

Motor power: 2.2kw

Rated pressure: 10Mpa (maximum 15Mpa)

Profile height: 120mm

Working air pressure: 0.8Mpa Gas consumption: 10L/min

Angle cylinder stroke: 35mm (angle stroke 18mm)

Positioning cylinder stroke: 60mm

Weight: about 700kg

Dimensions: 1350×1350×1400mm
