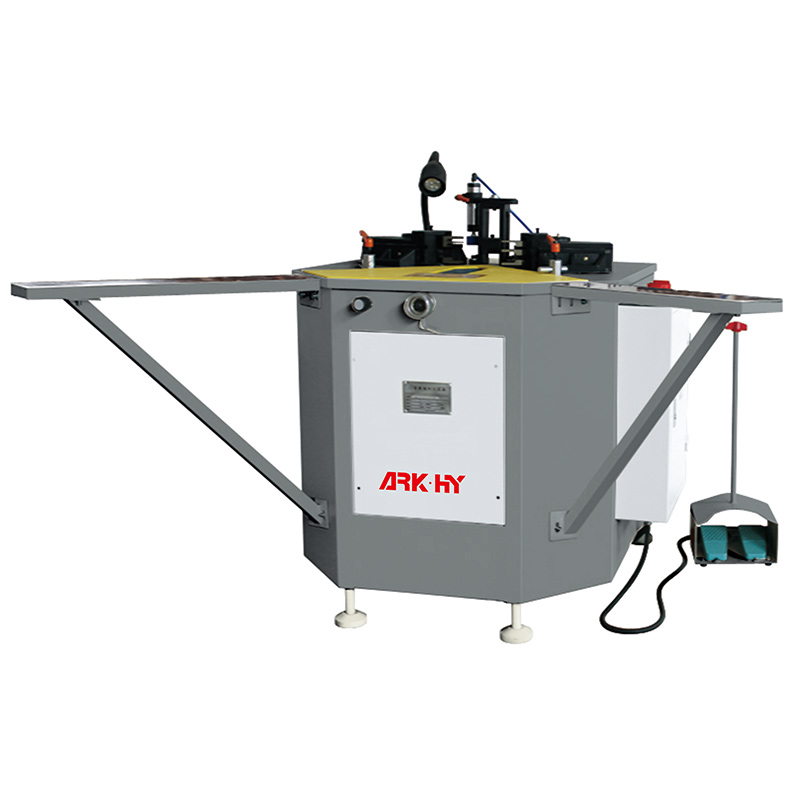

Heavy-duty single-head angle assembly machine for aluminum doors and windows (sunken type) ARK-DZG-160

Product features:

Applicable to the collision angle of a series of casement doors and casement window profiles.

The triangular positioning block can be lifted and lowered for easy access to the profile.

The impact angle is adjustable and has a wide adaptability range.

Stable performance, simple operation, safe and reliable.

Main technical parameters:

Input power: 2.2kw

Input power: 380V 50HZ

Working pressure: 0.5-0.6Mpa

Air consumption: 2L

Rated oil pressure: 20Mpa

Fuel tank capacity: 60L

Adaptable profile height: 160mm

Total angular pressure: 60KN

Outline dimensions: 1350*1350*1400mm

Weight: 700kg
